Affordable 2-Bedroom Tiny House On Wheels - Prefabricated Cabin tiny home
Cider Box
2 bedroom
1 bathroom
1 Kitchen
27.58 m²
DEEPBLUE SMARTHOUSE's Cider Box Tiny House offers a modern living space that combines style and functionality, shipped to Australia. This tiny house exemplifies DEEPBLUE SMARTHOUSE's commitment to high-quality construction and innovative design.
| No. |
Structure |
Material |
| 1 |
trailer |
2 axes steel trailer |
| 2 |
mainframe |
light steel frame |
| 3 |
roof |
color bond roofing |
| 4 |
external wall |
matel PU sandwich panel |
| 5 |
internal wall |
integrated panel |
| 6 |
floor |
laminated flooring |
| 7 |
kitchen and bathroom |
standard |
| 8 |
window and door |
double glass window, standard door |
| 9 |
electrical and plumbing system |
standard
|

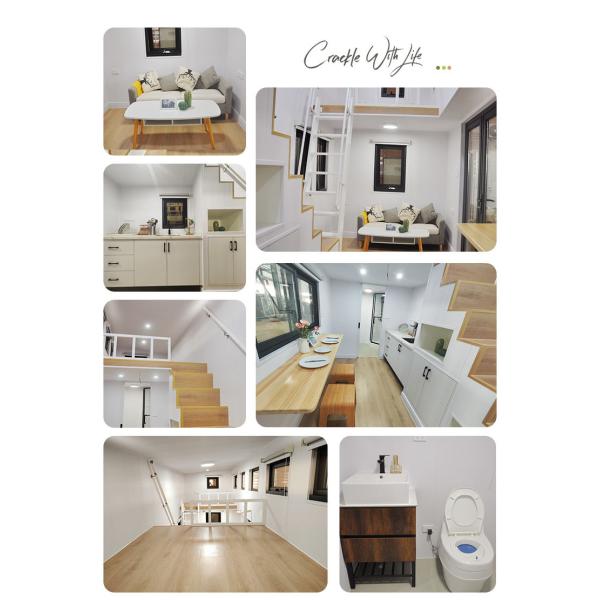

Measuring 2.35 by 7.8 meters, the Cider Box includes a kitchen, a bathroom, and a living room on the main floor. The living room is next to a staircase that leads to two loft bedrooms, providing sufficient sleeping space. Beneath the stairs, there is a storage area, and the kitchen includes cabinets for easy storage and everyday cooking. The bathroom, located on the left, includes a vanity, glass shower, and toilet, offering all the conveniences of a home.

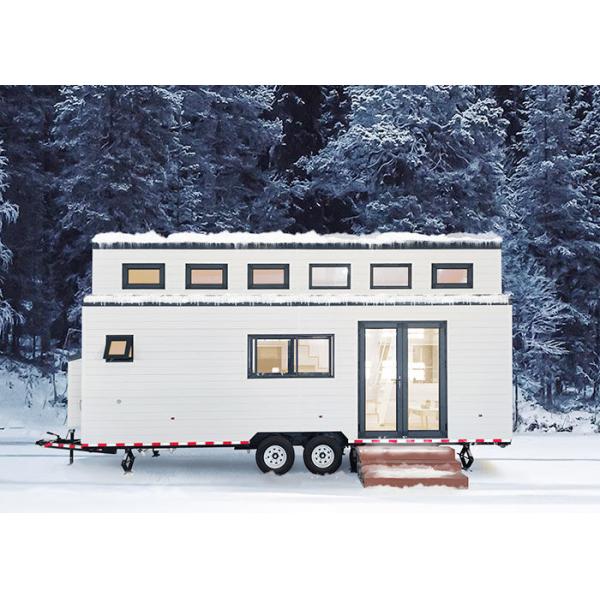

The exterior is clad in 16mm white thermal metal siding, giving the tiny house a sleek and contemporary appearance. The main structure is built using G550GD AZ150 light steel with a thickness of 0.75mm, ensuring a strong and precise construction. The thermal metal siding provides excellent insulation, making the house energy-efficient and comfortable.
Light Gauge Steel Structure :
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire-resistant.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.
Light steel frame technology is gaining popularity for its many advantages, such as faster construction times, greater energy efficiency, and better durability in extreme weather conditions. At Deepblue Smarthouse, we understand the importance of quality and sustainability in the building process, and we strive to use eco-friendly materials and processes in all our projects.
Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
Your first choice, Deepblue Prefabrica
